CABLE BLOWING MACHINE
Engineered for High-Performance Fiber Installation.
Pneumatic Opera is designed to deliver high power and reliable control, positioning itself among the best machines in its segment. With up to 900 N of pushing force, it ensures efficient installation even in demanding conditions.

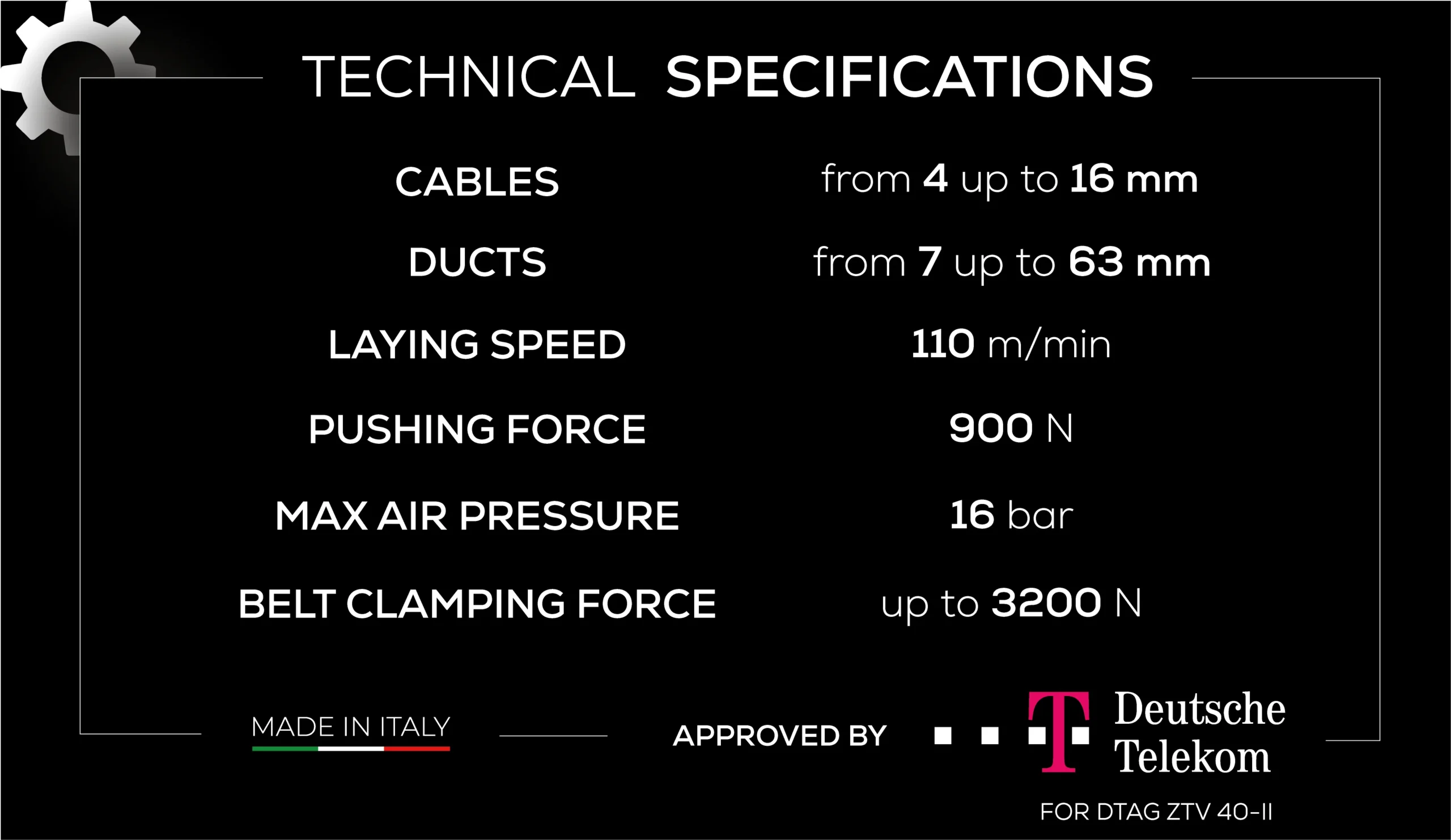

POWER IN NUMBERS
Explore OPERA’s technical specifications and see what makes it one of the most powerful machines in its class.

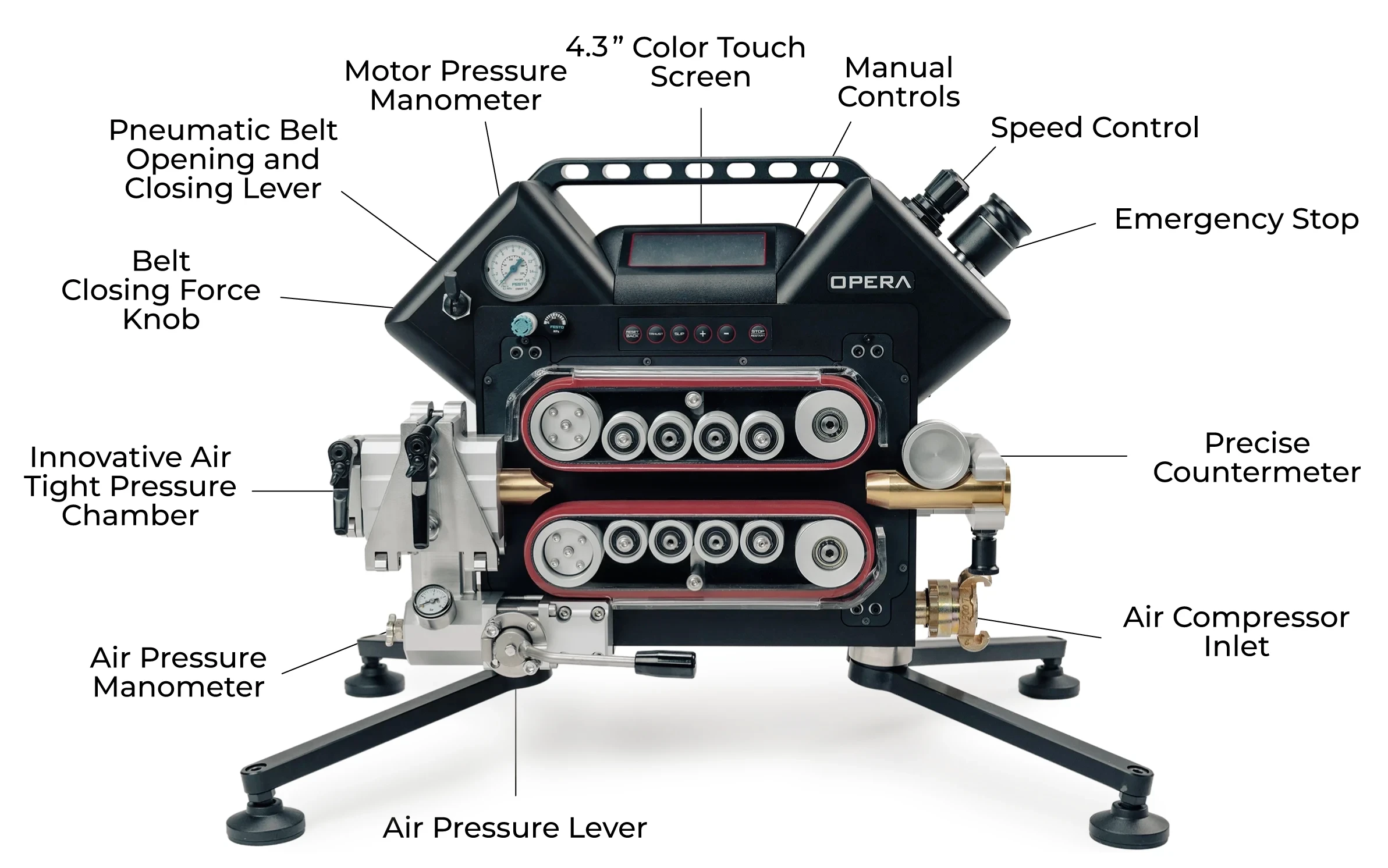

OVERVIEW
The following features highlight the key elements that make OPERA one of the most advanced cable blowing machines in its class.
ALL THE FEATURES
ALL THE FEATURES
WATCH OPERA IN ACTION
DETAILS THAT MAKE THE DIFFERENCE
900 N of Pushing force
The exceptional thrust enables the machine to overcome obstacles and reach longer installation distances, increasing installation efficiency and daily productivity.
DISPLAY SHOWING ALL DATA IN REAL TIME
Precise adjustment of maximum thrust and belt clamping force via a 4.3-inch display, with real-time monitoring of the pushing force and automatic detection of cable slippage on the belts for safe and efficient installation.
App and tablet with integrated reporting
A dedicated tablet with the Fibernet App generates a complete installation report with all laying parameters via Wi-Fi connection. Reports can be sent by email or saved to a USB drive.
The system has been approved by Deutsche Telekom.
REVERSE FUNCTION
A dedicated lever allows the operator to reverse the pushing direction, enabling controlled cable retraction when required.
Pneumatic belt opening and control
The belt clamping force is pneumatically controlled and manually adjustable, with the value displayed on the screen. This allows operators to monitor the pressure applied to the cable and easily replicate the same settings in future installations.
Auxiliary air outlet
This auxiliary air outlet allows operators to perform pressure testing, duct cleaning, and lubrication without using the tube adapter. It can also assist the reverse function by using air to help facilitate cable retraction when necessary.
Super airtight pressure chamber
The pressure chamber features a sealing system uniquely designed by Fibernet, ensuring exceptional airtightness and virtually eliminating air leakage for maximum blowing performance.
A CASE THAT BECOMES
A SUPPORT STAND
Opera’s case is designed to protect the machine during transport, including air travel, and becomes a support stand during work operations.
Dual operating mode: both electronic and manual
The machine is designed to operate both with advanced electronic controls and in fully manual mode, ensuring maximum reliability and uninterrupted installation.
High-precision meter counter.
A high-precision electronic meter counter with 4,096 pulses per revolution, ensuring extremely accurate cable length measurement in both directions, with real-time installation data displayed on the screen.
MONOBLOCK ALUMINIUM CHASSIS
The machine is built with a single-piece aluminium chassis, ensuring high structural strength and long-term reliability. This design maintains perfect alignment over time, guaranteeing consistent performance, stability, and durability.
REAR COVER
Air control knob
Adapter up to 63 mm
BELT REPLACEMENT IN UNDER XX SECONDS
Quick ratchet locking system
